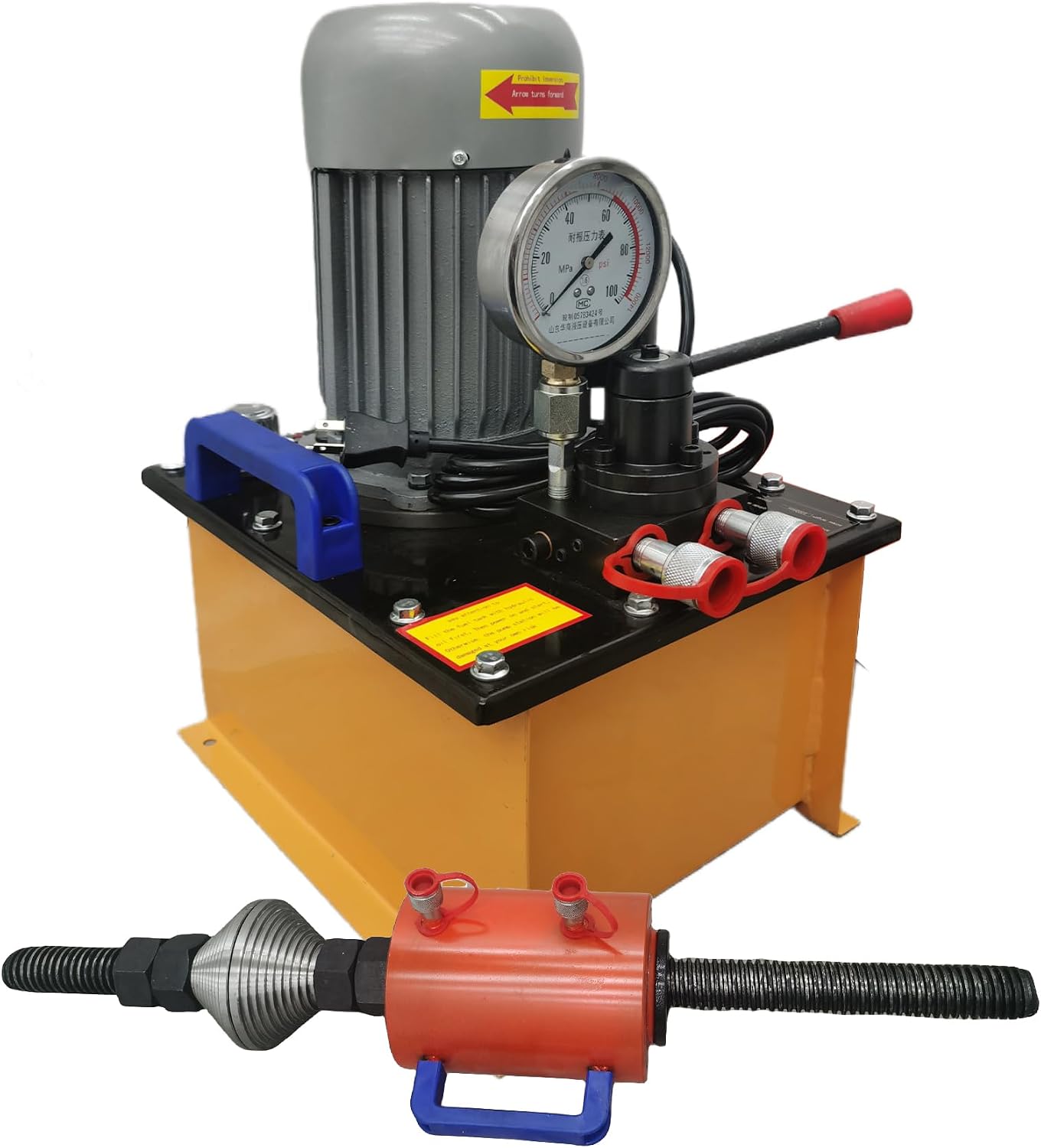

TECHTONGDA 100T Excavator Sleeve Pressing Machine 220V Crawler Pin Presses, Pressure Sleeve Range <150mm/5.91in for Pressing and Installing Crawler Machinery Equipment
Product details
| Management number | 222692076 | Release Date | 2026/05/04 | List Price | US$514.00 | Model Number | 222692076 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product information Product Name: 100T Excavator sleeve pressing machine Rated voltage: 220V Rated power: 1500W Pressure sleeve range: <150mm/5.91in Screw diameter: 40/50mm(1.57in/1.96in) Screw length: 1000mm/39.37in Cylinder stroke:100mm/3.937in Operating pressure:0-63Mpa Pump station volume:16L Note:There will be a little error in manual measurement. The product pump station is equipped with a plug. The tank should be filled with hydraulic oil, and then powered on to start, otherwise the pump station will be damaged and pay for itself. The pump station needs to add 46 # or 68 # anti-wear hydraulic oil by yourself. Item Number:022488
- 【High Performance】-Solid overall structure, easy to use, can be applied to small site construction. Screw diameter: 40/50mm(1.57in/1.96in). Screw length: 1000mm/39.37in. Cylinder stroke: 100mm/3.937in. Improve replacement efficiency and reduce labor intensity.
- 【Seismic Hydraulic Gauge】-With high-strength hydraulic power, it is easy and quick to squeeze the pressure relief. Excavator sleeve pressing machine is equipped with a pure copper motor, with strong power, fast heat dissipation and longer service life.
- 【Explosion-proof Oil Hose】-Rubber oil hose, sturdy anti-high pressure flame retardant performance, large caliber oil inlet, refueling is convenient and not blocked. Stainless steel positioning sleeve, precise structure, lightweight design, long service life.
- 【Pump Station】-Pump station volume:16L. The tank should be filled with hydraulic oil, and then powered on to start, otherwise the pump station will be damaged and pay for itself. The pump station needs to add 46 # or 68 # anti-wear hydraulic oil by yourself.
- 【Wide Application】-Electric Track Pin Press is a special tool for the maintenance and assembly of the crawler excavator. Electric Hydraulic Dismantling and Pressing Machine is widely used in highway, railroad, bridge, construction, coal mine shipbuilding and other industries.
| UPC | 840403726936 |
|---|---|
| Color | Multicolored |
| Voltage | 220 Volts |
| Brand Name | TECHTONGDA |
| Unit Count | 1.0 Count |
| Manufacturer | TECHTONGDA |
| Material Type | steel |
| Maximum Power | 1500 Watts |
| Manufacturer Part Number | L-022488 |
| Item Dimensions L x W x H | 12.2"L x 15.75"W x 20.47"H |
